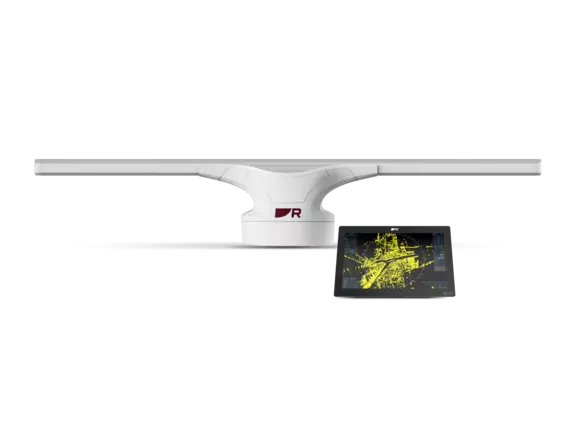

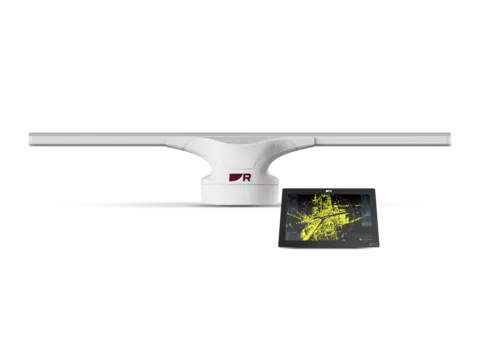

Pathfinder 16

6ft

Slotted Array

Horizontal

25°

1.32°

12, 24, 36, 48, 60

100 Kn

12 Kg

96 Nm

12, 24, 36, 48, 60

1

1 (Raynet)

9370, 9400, 9430

Linear

< 5 dB

110 W

95 W

30 W

195 W

388 x 360 x 335

16 Kg

46 ns

46 ns

192 ns

192 ns

2300 ns

3900 ns

17600 ns

35000 ns

79000 ns

79000 ns

4.8 kHz

4.8 kHz

4.8 kHz

4.8 kHz

4.8 kHz

4.8 kHz

3.6 kHz

1.6 kHz

0.82 kHz

0.7 kHz

Better than Minimum Range detailed in IEC 62388¹

Better than Range Discrimination detailed in IEC 62388²

Better than Range Accuracy detailed in IEC 62388³

Better than Bearing Discrimination detailed in IEC 62388⁴

Better than Bearing Accuracy detailed in IEC 62388³

Better than Warm Up Time detailed in IEC 62388⁵

H-UP, STAB H-UP, C-UP, N-UP

Ground, Sea

True, Relative

100 Targets (Auto or Manual)

4000 Displayed

6000 Processed

Off, 1-30 mins

Off, 1-30 mins

Off, 1-30 mins

>10 >100 points per map

2

> 10 PI lines

1. (MSC.192/5.4.1) With own ship at zero speed (or at a fixed land-based site), an antenna height of 15 m above the sea level and in calm (minimal clutter) conditions, the navigational buoy (with corner reflector) in Table 2 shall be detected at a minimum horizontal range of 40 m from the antenna position and up to a range of 1 NM, without changing the setting of control functions other than the range scale selector

2. (MSC.192/5.5.1) The radar system shall be capable of displaying two point targets on the same bearing, separated by 40 m in range, as two distinct objects.

3. (MSC.192/5.2) The radar system range and bearing accuracy shall be:
Range: within 30 m or 1 % of the range scale in use, whichever is greater;
Bearing: within 1° in typical operational and environmental conditions.

4. (MSC.192/5.5.2) The radar system shall be capable of displaying two point targets at the same range, separated by 2,5° in bearing, as two distinct objects.

5. (MSC.192/5.8) The radar equipment shall be fully operational (run or transmit status) within 4 min after switch-on from cold. A standby condition shall be provided, in which there is no operational radar transmission. The radar shall be fully operational within 5 s from the standby condition.

0.13 NM

0.25 NM

0.25 NM

0.5 NM

1 NM

2 NM

3 NM

4 NM

8 NM

12 NM

3 PoE RayNet (10/100/1,000 Mbits/s)

Yes

2 Bare-ended wires

8 Configurable Opto-isolated

6 Configurable ISO-Drive™ isolated

1 Alarm output relay (N/O and N/C contacts)

Activated on System Fail or Specific Alert ID

10/100BaseT, automatic polarity detection

AAM, ACK, ACN, ALR, APB, BWC, BWR, DBT, DPT, DSC, DSE, DTM, GBS, GGA, GLC, GLL, GNS, GSA, GST, GSV, HBT, HDG, HDT, MDA, MSK, MSS, MTW, MWV, NSR, RMA, RMB, RMC, ROT, RRT, RTE, SRP, SSD, THS, TLB, TTD, TTM, VBW, VDM, VDO, VHW, VLW, VSD, VTG, WPL, XTE, ZDA

AAM, ACK, ALC, ALF, ALR, APB, ARC, BWC, BWR, DBT, DPT, DTM, EVE, GBS, GGA, GLC, GLL, GNS, GSA, GST, GSV, HBT, HDG, HDT, MDA, MSK, MSS, MTW, MWV, OSD, RMA, RMB, RMC, RRT, RSD, RTE, SRP, TLB, TTD, TTM, VHW, VLW, VTG, WPL, XTE, ZDA

V (DC) - 24 (via VCM100) / AC - 110/230v via AC Power Kit

V (DC) - 24 / AC - 110/230v via AC Power Kit

V (DC) - 24 / AC - 110/230v via AC Power Kit

IPx6

-25°C to +55°C (-13°F to 131°F)

Up to 93% at 40°C (104°F)

100 kn

IPx6, IPx7

-25°C to +55°C (-13°F to 131°F)

Up to 93% at 40°C (104°F)

IP40

-25°C to +70°C (-13°F to 158°F)

Up to 95% at 55°C (131°F)
