Pathfinder marine-grade keyboard offers precise radar & ECDIS control via 72 buttons, rotary dials & integrated trackball.

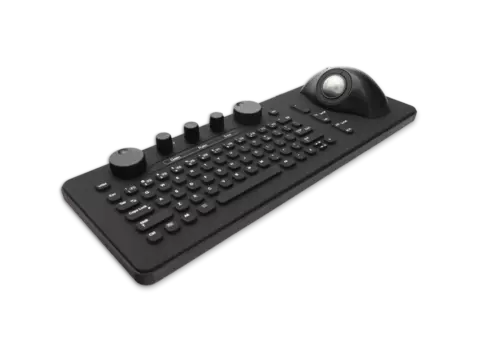

The Pathfinder Control Panel Keyboard with Trackball is a rugged, marine-grade interface designed for seamless control of Raymarine radar and ECDIS systems. Featuring 72 tactile buttons, rotary dials for Gain, Rain Clutter, and Sea Clutter, and dedicated knobs for VRM and EBL, it delivers intuitive operation in demanding environments. The integrated 38 mm trackball offers precise cursor control with ergonomic design and easy maintenance. Waterproof to IP67/IP68 and IEC60945 compliant, the keyboard ensures reliable performance in harsh marine conditions. Its USB connectivity and non-slip weighted design make it a vital tool for commercial bridge operations.
Keyboard solution includes 72 dedicated buttons, rotary dials, and an integrated high-precision trackball.
| Mechanical | |
|---|---|
| Measurements | L 46.8cm, D 17cm |
| Mounting Position | Desktop |
| Feet | Rubber square |
| Seal rating | IP65 sealed |
| Cable length | 1.6 meters |
| Output connector | USB-A 2.0 male connector |
| Electrical | |
|---|---|
| Protocol/output | USB 2.0 (Full Speed) |
| Supply voltage | +4.4V +5.25V D.C |
| Supply current | 100mA (nonbacklit maximum), 200mA (backlit maximum) |
| PCB protection | Acrylic conformal coating |
