Marine-grade USB trackball with scroll wheel & dual buttons, IEC 60945 certified for waterproof, ergonomic control of Raymarine Commercial radar/chart systems.

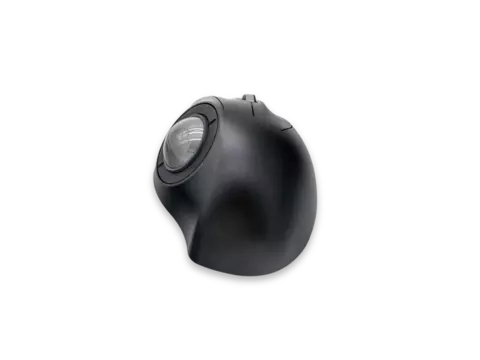

This rugged marine-grade USB trackball controller is purpose-built for Raymarine Pathfinder Radar, ECDIS, and ECS systems. Featuring a responsive 38mm optical ball, two tactile buttons, and a hall-effect scroll wheel, it offers precise control in demanding marine environments. The ergonomic design fits comfortably in the hand, while the heavy metal baseplate with anti-slip pads ensures stability in rough seas. Fully waterproof to IP68 standards and certified to IEC 60945, it withstands washdowns and harsh conditions. With plug-and-play USB connectivity and no drivers required, it’s a reliable, marine-grade solution for professional maritime operations.
Trackball includes a responsive 38mm optical ball, two tactile buttons, and a hall-effect scroll wheel.
| Electrical | |
|---|---|
| Protocol | USB & PS/2 (auto-select) |
| Supply voltage | 4.4V to 5.25V DC |
| Supply current | 100mA Max. |
| Trackball resolution | 1200 counts per ball revolution @ 1 IPS (inches per second) +/- 10% |
| Scroll wheel resolution | 24 counts per wheel revolution |
| Output connector | USB "A" type connector with 2 metre cable |
| Mating output connector | Standard USB "A" type socket |
| Mechanical | |
|---|---|
| Weight | ~500 grams |
| Housing material | PC/ABS |
| Housing colour/finish | Black/fine-textured finish |
| Base plate material | Aluminum |
| Base plate finish | Bead blasted & clear anodised |
| Mounting position | All angles |
| Ball size/material | Ø38.1mm (1.5")/Epoxy resin |
| Tracking force | 20 grams nominal – damper ring seal 20-40 grams – PTFE seal |
| Ball load | 100N (10Kg) maximum downward pressure for 2 minutes @ 20°C |
| Resolvable ball speed | 30 IPS (inches per second) |
| Tracking engine | Infra-red optical navigation technology |
| Removable ring | PC/ABS, black |
| Wheel diameter | Ø25mm |
| Wheel material | PC/ABS |
| Wheel colour | Grey |
| Encoding technology | Hall effect |
| Magnet strength | N42 |
| Detent-scrolling force | 30 grams nominal |
| Switch actuation force | 275 ± 125 grams force |
| Left/Right Switch actuation force | 250 ± 100 grams force |
| Environmental | |
|---|---|
| Operating temperature | 0°C to +55°C (IEC 60068-2-1, IEC60068-2-2) |
| Storage temperature | -40°C to + 85 °C (IEC 60068-2-1, IEC60068-2-2) |
| Operating humidity | 93% RH @ 40°C, non-condensing (IEC 60068-2-78) |
| Storage humidity | 10%-95% non-condensing (IEC 60068-2-78) |
| Vibration | 2g, 10-500Hz, 1 octave/min, 10 sweep cycles (IEC 60068-2-6) |
| Operating Shock | 15g/11ms, ½ sine, 3 shocks in +ve and –ve direction, all 3 axes (IEC 60068-2-27) |
| Mechanical lifetime | 1 million ball revolutions |
| MTBF | in excess of 80,000 hours (MIL-STD-217F) |
| ESD | 15kV air-discharge and 8kV contact discharge (IEC 61000-4-2) |
| EMC | Radiated immunity - limits according to level 3 of IEC 61000-4-3 |
| Sealing capability | IP68 |
