Rugged NMEA multiplexer for reliable data routing and seamless Raymarine ECS/Black Box radar integration in tough commercial marine settings.

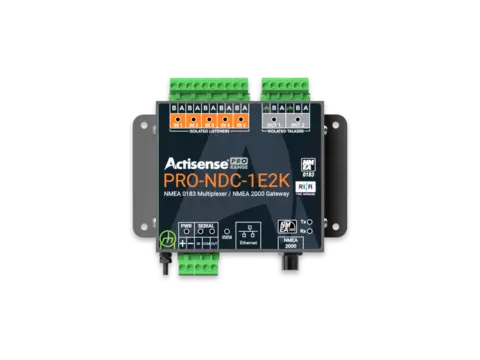

The Raymarine Pathfinder Data Collection Unit 2 is a rugged NMEA multiplexer designed for seamless integration with Pathfinder ECS and Pathfinder Black Box Radar systems. Built on the Actisense PRO-NDC-1E2K platform, it bridges NMEA 0183 and NMEA 2000 networks, enabling reliable data routing across complex onboard systems. With five opto-isolated inputs, two ISO-Drive outputs, Ethernet streaming, and web-based configuration, it offers flexible, intelligent data management for non-SOLAS commercial vessels. RINA type-approved and IEC 60945 compliant, the DCU2 is engineered for dependable performance in demanding marine environments.
Pathfinder DCU-2 includes five OPTO-isolated NMEA 0183 inputs and two ISO-Drive™ outputs.
| Power Supply | |
|---|---|
| Input supply voltage | 9 to 35 V DC |
| Input supply current | 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) |
| Input protection | Continuous reverse polarity, transient overvoltage and ESD protection |
| Power indicator | LED, Blue – indicates unit is functioning correctly |
| Input Supply connector | Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) |
| NMEA 0183 Port – Listener & Talker | |
|---|---|
| Number of Listener / Input Ports | 5 isolated NMEA 0183 Listeners |
| Number of Talker / Output Ports | 2 isolated NMEA 0183 Talkers |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / baud rate | 4800 to 38400 bps |
| Talker Output Voltage Drive | >= 2.2V (differential) into 100 ohm |
| Talker Output Current Drive | 20 mA maximum per output |
| Talker Output Protection | Short circuit and ESD |
| Talker Data Indicator | LED, Orange (Flashes with data rate) |
| Listener Input Voltage Tolerance | -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) |
| Listener Input Protection | Current limited, overdrive protection to 40 VDC and ESD protection |
| Listener Data Indicator | LED, Green (Flashes with data rate) |
| Connectors | Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) |
| Serial Port | |
|---|---|
| Compatibility | RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / baud rate | 115200 bps |
| Output voltage drive | >= 2.1V (differential) into 100 ohm |
| Output current drive | 20 mA max |
| Output protection | Short circuit and ESD |
| Input voltage tolerance | -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) |
| Input protection | Current limited, overdrive protection to 40 VDC and ESD protection |
| Data Indicators | LED’s: Green = Receive, Orange = Transmit |
| Connectors | Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
| Ethernet Port | |
|---|---|
| Host interface | 10/100BaseT, automatic polarity detection |
| Supported protocols | TCP/IP for configuration and firmware updating TCP/IP and UDP for NMEA 0183 comms |
| Connector | RJ45 |
| Indicators | Green – Link, Yellow – 100 Mbps |
| NMEA 2000 Port | |
|---|---|
| Compatibility | NMEA 2000 Certification Pending |
| Speed / baud rate | 250 kbps |
| Connectivity | M12 male (A-coded) connector |
| Isolation | |
|---|---|
| NMEA 0183 Listener | Uses IsoDriveTM, Hi-Pot tested to 1000V |
| NMEA 0183 Talker | Uses IsoDriveTM, Hi-Pot tested to 1000V |
| Serial Port | Uses IsoDriveTM, Hi-Pot tested to 1000V |
| Ethernet Port | 2kv for 60s |
| NMEA 2000 Port | OPTO-Isolated, Hi-Pot tested to 1000V |
| Mechanical | |
|---|---|
| Housing Material | 316 Stainless Steel |
| Dimensions | 139mm (W) x 98mm (H) x 26mm (D) |
| Weight | 360g |
| Mounting | Bulkhead mount or DIN rail mount (DIN kit 1) |
| Approvals & Certifications | |
|---|---|
| EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
| Compass Safe Distance | 300mm |
| Type Approval Certificate | RINA |
| Operating Temperature | -25 to +70°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity (RH) | 95% @ 55°C |
| Environmental Protection | IP40 |
