Rugged NMEA 0183 multiplexer with ECDIS/radar integration, enabling smart data routing and filtering in complex marine networks.

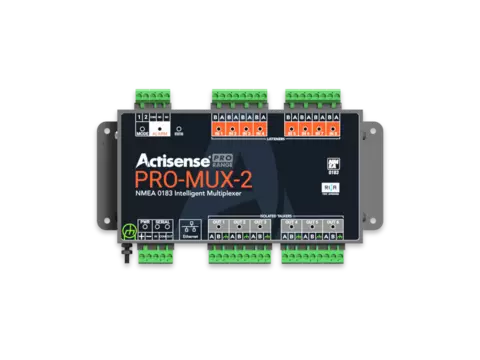

The Raymarine Pathfinder Data Collection Unit (DCU) is a rugged, intelligent NMEA 0183 multiplexer built on the Actisense PRO-MUX-2 platform. Designed for seamless integration with Raymarine Pathfinder ECDIS and Pathfinder Radar CAT-1, CAT-2, and CAT-3 systems, it delivers reliable data routing across complex bridge networks. With eight OPTO-isolated inputs, six ISO-Drive™ outputs, and advanced filtering capabilities, the DCU ensures precise control of navigation and sensor data. A web-based configuration interface, diagnostic LEDs, and stainless-steel housing make it ideal for commercial vessels, superyachts, and government craft requiring robust, type-approved data management in demanding marine environments.
Pathfinder DCU includes eight OPTO-isolated NMEA 0183 inputs and six ISO-Drive™ isolated outputs.
| Power Supply | |
|---|---|
| Input Supply Voltage | 9 to 35 V DC |
| Input Supply Voltage | 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) |
| Input Protection | Continuous reverse polarity, transient overvoltage and ESD protection |
| Power Indicator | LED, Blue – indicates unit is functioning correctly |
| Input Supply Connector | Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) |
| NMEA 0183 Port – Listener & Talker | |
|---|---|
| Number of Listener / Input Ports | 8 isolated NMEA 0183 Listeners |
| Number of Talker / Output Ports | 6 isolated NMEA 0183 Talkers |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / baud rate | 4800 to 38400 bps |
| Talker Output Voltage Drive | >= 2.2V (differential) into 100 ohm |
| Talker Output Current Drive | 20 mA maximum per output |
| Talker Output Protection | Short circuit and ESD |
| Talker Data Indicator | LED, Orange (Flashes at data rate) |
| Listener Input Voltage Tolerance | -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) |
| Listener Input Protection | Current limited, overdrive protection to 40 VDC and ESD protection |
| Listener Data Indicator | LED, Green (Flashes to indicate valid input) |
| Connectors | Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
| Serial Port | |
|---|---|
| Compatibility | RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / baud rate | 4800 to 115200 bps |
| Output Voltage Drive | >= 2.1V (differential) into 100 ohm |
| Output Current Drive | 20 mA max. |
| Output Protection | Short circuit and ESD |
| Input Voltage Tolerance | -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) |
| Input Protection | Current limited, overdrive protection to 40 VDC and ESD protection |
| Data Indicators | LED’s: Green = Receive, Orange = Transmit |
| Connectors | Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
| Ethernet Port | |
|---|---|
| Host Interface | 10/100BaseT, automatic polarity detection |
| Supported Protocols | TCP/IP for configuration and firmware updating TCP/IP and UDP for NMEA 0183 comms |
| Indicators | Green = Link/Activity, Yellow = 100 Mbps |
| Connector | RJ45 |
| Isolation | |
|---|---|
| NMEA 0183 Listener | OPTO-Isolated, Hi-Pot tested to 1000V |
| NMEA 0183 Talker | Uses IsoDrive™, Hi-Pot tested to 1000V |
| Serial Port | Uses IsoDrive™, Hi-Pot tested to 1000V |
| Alarm Relay | Hi-Pot tested to 1000V |
| Ethernet Port | 2kV for 60s |
| Mode Inputs | |
|---|---|
| Input Voltage Range | 0 to 35V DC |
| Protection | Transient overvoltage and ESD protection |
| Connectors | Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
| Alarm Output | |
|---|---|
| Contacts | Common, Normally Open and Normally Closed |
| Alarm Indicator | LED, Red indicates a valid alarm condition |
| Contact Ratings | 35VAC / 50VDC |
| Connectors | Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) |
| Mechanical | |
|---|---|
| Housing Material | 316 Stainless Steel |
| Dimensions | 210mm (W) x 128mm (H) x 27mm (D) |
| Weight | 540g |
| Mounting | Bulkhead mount or DIN rail mount (DIN kit 1) |
| Approvals & Certifications | |
|---|---|
| EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
| Compass Safe Distance | 175mm |
| Type Approval Certificate | RINA |
| Operating Temperature | -25 to +70°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity (RH) | 95% @ 55°C |
| Environmental Protection | IP40 |
